Features
Parameters

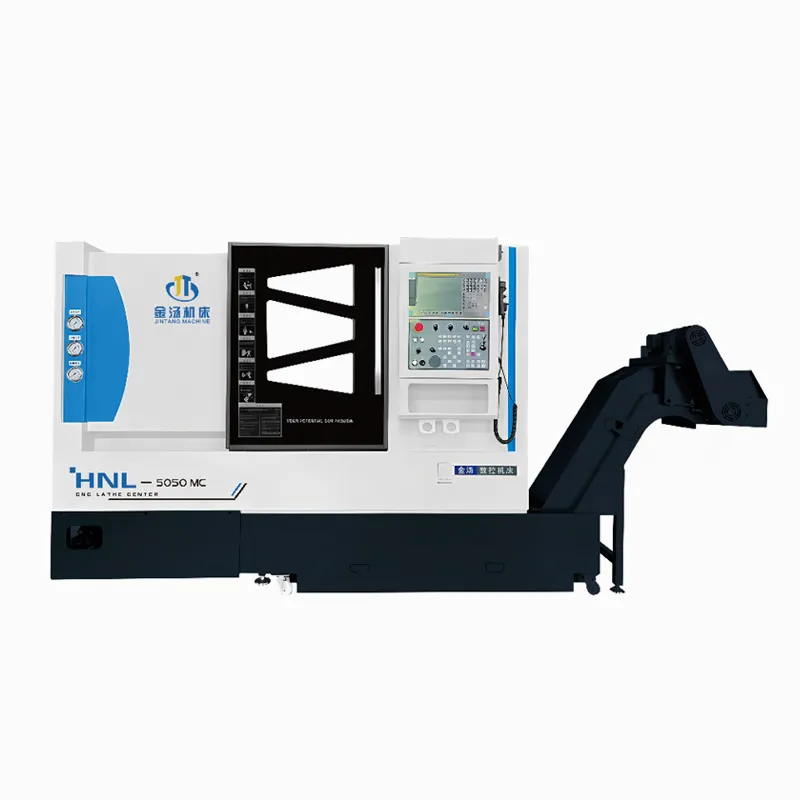

● The overall structure has been optimized and designed to be compact, with a larger working space, smaller interference and higher cutting speed.
● Made of high-performance cast iron, the main parts have undergone two thermal aging processes, and have excellent static, dynamic and thermal stiffness.
● The guide rail at the front end of the bed is arranged at 30 degrees, which ensures smooth chip removal and makes it easy to form an automated production line.
● Y-axis: It can perform composite processing such as drilling, milling, tapping, etc. on the end face or side face, and can realize the processing concept of one-time clamping and all completion.
● CNC system: Standard configuration: FANUC 0i TF (3B). Optional configurations: New era, Siemens, Huazhong CNC.
| Capacity | Guide ways type | Linear guide rails |
| Bed angle | 30° | |
| Max turning diameter of machine tool | φ450mm | |
| Max processing diameter of disc-shaped part | φ350mm | |
| Max turning length | φ450mm | |
| Maximum milling length | 500mm | |
| Spindle | Main shaft structure | Sleeve spindle outer diameter170 |
| Main shaft nose type | A2-5 | |
| Spindle hole diameter | φ56mm | |
| Bar capacity | φ42mm | |
| Max spindle speed | 5000r/min | |
| Main motor power | 7.5/11KW | |
| Max spindle output torque | 105N.m | |
| C-axis indexingAccuracy | 0.001 deg | |
| Hydraulic chuck size | 6 inch | |
| Turrte | Turret type | BMT40 |
| Number of tool station | 15 | |
| OD. tool size | 20x20mm | |
| Max boring bar size | φ32mm | |
| Rotary tool power | 2.7KW | |
| Max speed of power tool holder | 4000rpm | |
| Max torque of driven tool holder | 12N.m | |
| Feed parameters | Modei of X-axis guide rail | 30Roller |
| Modei of Y-axis guide rail | 30Roller | |
| Modei of Z-axis guide rail | 35Roller | |
| Model of X-axis lead screw | 3210-C3 | |
| Model of Y-axis lead screw | 3210-C3 | |
| Model of Z-axis lead screw | 3210-C3 | |
| Lead screw bearings | 2562-P4 | |
| Travel | X-axis max travel | 250mm |
| Y-axis max travel | ±35mm | |
| Z-axis max travel | 510mm | |
| Fast movement speed | X-axis fast positioning | 18m/min |
| Y-axis fast positioning | 10m/min | |
| Z-axis fast positioning | 18m/min | |
| Feed Motor | X-axis feed motor | 1.2KW |
| Y-axis feed motor | 1.8KW | |
| Z-axis feed motor | 1.8KW | |
| Tailstock | Tailstock structure(Horizontal) | Sliding hard rail/Linear guide |
| Tailstock quill diameter | φ70 | |
| Turning center type | Mo's No. 4/Mo's No. 5 | |
| Tailstock travel | 400mm/380mm | |
| Centering travel | 120Hydraulic drive | |
| Max distance from jaw to center rest | 550mm/430mm | |
| Tailstock control | Manual brake hydraulic retractable/Hydraulic drive | |
| Accuracy | X-axis repeatability | 0.005mm |
| Y-axis repeatability | 0.005mm | |
| Z-axis repeatability | 0.005mm | |
| C-axis repeatability | 0.006deg | |
| X-axis positioning | 0.009mm | |
| Y-axis positioning | 0.009mm | |
| Z-axis positioning | 0.012mm | |
| C-axis positioning | 0.01deg | |
| Other | Coolant pressure | 10bar |
| Protection type | Fully enclosed | |
| Independent chip conveyor | Side/rear row | |
| Water tank (capacity) | Side-mounted independent water tank80L | |
| Dimensions (L x W x H) | 2730x1710x1920mm | |
| Machine tool weight | 3500kg | |
| Numerical control system | FANUC Oi TF(3B) |
